Retention Knob CAT40/50 PULL STUDS

Retention Knob CAT40/50 PULL STUD for ANSI standard tool holders

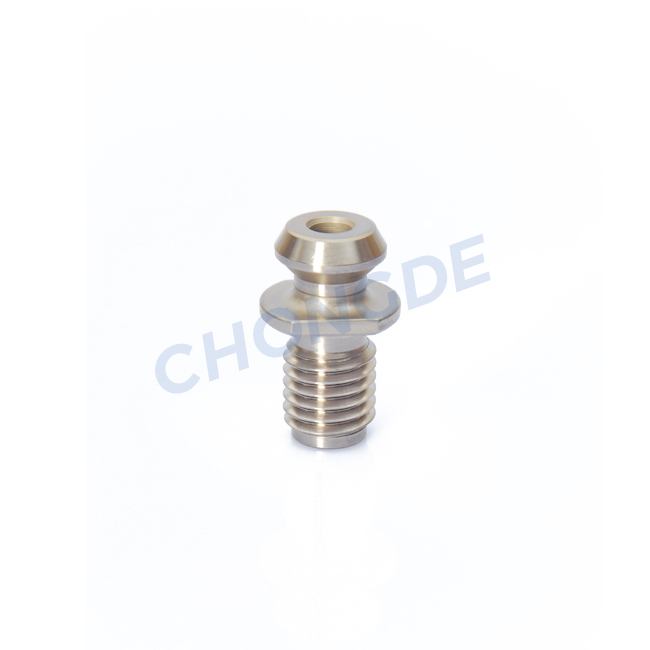

CAT PULL STUD mainly using for ChongDe high precision CAT 30/40/50 tool holders. It includes both coolant thru type and none coolant thru type. The hardness of bar head and thread are different, the lower hardness of pull stud thread to protect the tool holder’s shank thread resisting hit.

Kindly Note: Please make sure the Retention Knob you choose is the right one for your machine. Using wrong Retention Knob can cause damage to your machine.

Features:

1. Material: 20CrMnTi;

2. Hardness: 54-57 HRC;

3. Carbon depth:＞0.8；

4. Hardness of thread is lower: 35±5 HRC, to protect shank thread.

5. Cryogenic treatment and thermal aging treatment can reduce the inner residual stress, improve durability and precision stability.

6. The nickel coating surface of the pull stud has good effects of anti-rust and wear-resisting.

Product Drawing and Size
