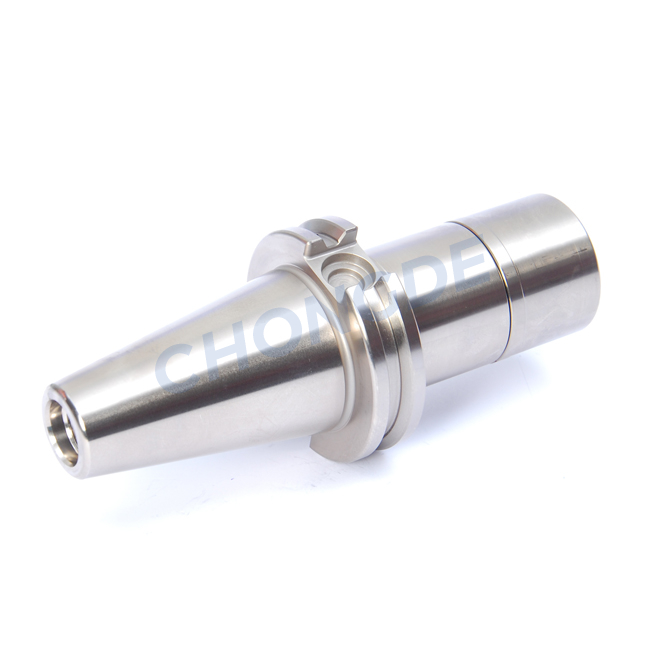

Ultra Precision CAT GSK High speed collet chuck

Material: 20CrMnTi or JIS-SCM415
Hardness: 56-60HRC;
Carburizing depth: ＞0.8；
Roughness： Ra＜0.4u；
Taper precision ≤AT3 and part of the standard size are tested by Diebold standard inspection tools which made in Germany;
Run out of the inside shank cone: ≤0.002mm；Coaxiality with collet : ≤ 0.005mm；
Dynamic balance can do:G2.5 30000rpm；
Suitable for boring, milling, drilling, tapping, grinding, carving processing.

Model:
CAT40-GSK16-90
Brand:
ChongDe

Availability:

Quantity:



Inquire Add to Basket

Product Description

Ultra Precision CAT GSK High speed collet chuck

CAT GSK Tool holder series has less protrusion length and more contact area than normal ER tool holder, so can provide higher radial cutting force, and greatly increase the clamping power. CAT GSK chuck has more stable characteristics can be gotten in high speed cutting process, improved service life. The CAT GSK tool holders are more suitable for higher speed and higher precision cutting.

Features:

1. Material: 20CrMnTi or JIS-SCM415

2. Hardness: 56-60HRC;

3. Carburizing depth: ＞0.8；

4. Roughness： Ra＜0.4u；

5. Taper precision ≤AT3 and part of the standard size are tested by Diebold standard inspection tools which made in Germany;

6.Run out of the inside shank cone: ≤0.002mm；Coaxiality with collet : ≤ 0.005mm；

7. Dynamic balance can do:G2.5 30000rpm；

8. Suitable for boring, milling, drilling, tapping, grinding, carving processing.

Our advantages

1. Good Rigidity

2. High accuracy stability of parts processing and surface processing dimension

3. Improving cutting tool using life

4. The wear of taper shank caused by vibration is reduced during heavy cutting

5. ATC repeats the operation with high accuracy

6. The appearance with nickel coating, the products is anti-rust, anti-corrosion and durability better.

4. Clean appearance and accuracy stable

5. -196℃ long cryogenic treatment and ultra long time thermal aging processing, reducing residual stresses and increasing the hardness and toughness.

Order No.	Model No.	D	L	D1	Collet	Spanner	FIG	KGS
CD020112.3006060	CAT30-CSK6-60	2~6	60	20	CSK6	TSK6	A	0.7
CD020112.3006090	CAT30-CSK6-90		90				A	0.7
CD020112.3006120	CAT30-CSK6-120		120				B	0.8
CD020112.3010045	CAT30-CSK10-45	2~10	45	27.5	CSK10	TSK10	A	0.8
CD020112.3010060	CAT30-CSK10-60		60				A	0.9
CD020112.3010075	CAT30-CSK10-75		75				A	1
CD020112.3010090	CAT30-CSK10-90		90				A	1
CD020112.3010120	CAT30-CSK10-120		120				A	1.1
CD020112.3013060	CAT30-CSK13-60	3~13	60	37	CSK13	TSK13	A	1.1
CD020112.3013090	CAT30-CSK13-90		90				A	1.3
CD020112.3013120	CAT30-CSK13-120		120				A	1.5
CD020112.3016060	CAT30-CSK16-60	2~16	60	40	CSK16	TSK16	A	1.1
CD020112.3016075	CAT30-CSK16-75		75				A	1.2
CD020112.3016090	CAT30-CSK16-90		90				A	1.2
CD020112.3016120	CAT30-CSK16-120		120				A	1.3
CD020112.3020060	CAT30-CSK20-60	4~20	60	48	CSK20	TSK20	A	0.7
CD020112.3020075	CAT30-CSK20-75		75				A	0.9
CD020112.3020090	CAT30-CSK20-90		90				A	1.2
CD020112.3025090	CAT30-CSK25-90	6~25	90	55	CSK25	TSK25	A	1.5
CD020112.4006060	CAT40-CSK6-60	2~6	60	20	CSK6	TSK6	A	1
CD020112.4006090	CAT40-CSK6-90		90				A	1.1
CD020112.4006120	CAT40-CSK6-120		120				B	1.4
CD020112.4006150	CAT40-CSK6-150		150				B	1.5
CD020112.4010060	CAT40-CSK10-60	2~10	60	27.5	CSK10	TSK10	A	1.1
CD020112.4010075	CAT40-CSK10-75		75				A	1.2
CD020112.4010090	CAT40-CSK10-90		90				A	1.2
CD020112.4010120	CAT40-CSK10-120		120				B	1.4
CD020112.4010150	CAT40-CSK10-150		150				B	1.6
CD020112.4010180	CAT40-CSK10-180		180				B	1.6
CD020112.4013060	CAT40-CSK13-60		60	37	CSK13	TSK13	A	1.3
CD020112.4013090	CAT40-CSK13-90		90	37	CSK13	TSK13	A	1.5
CD020112.4016090	CAT40-CSK16-60	2~16	60	40	CSK16	TSK16	A	1.3
CD020112.4016075	CAT40-CSK16-75		75				A	1.4
CD020112.4016090	CAT40-CSK16-90		90				A	1.5
CD020112.4016120	CAT40-CSK16-120		120				A	1.7
CD020112.4016150	CAT40-CSK16-150		150				A	1.9
CD020112.4016180	CAT40-CSK16-180		180				A	2
CD020112.4020060	CAT40-CSK20-60	4~20	60	48	CSK20	TSK20	A	1.3
CD020112.4020075	CAT40-CSK20-75		75				A	1.4
CD020112.4020090	CAT40-CSK20-90		90				A	1.6
CD020112.4020120	CAT40-CSK20-120		120				A	2
CD020112.4025075	CAT40-CSK25-75	6~25	75	55	CSK25	TSK25	A	1.7
CD020112.4025090	CAT40-CSK25-90		90				A	1.8
CD020112.4025120	CAT40-CSK25-120		120				A	2
CD020112.5006105	CAT50-CSK6-105	2~6	105	19.5	CSK6	TSK6	A	3.8
CD020112.5006135	CAT50-CSK6-135		135				B	3.9
CD020112.5006165	CAT50-CSK6-165		165				B	4
CD020112.5006200	CAT50-CSK6-200		200				B	4.2
CD020112.5010105	CAT50-CSK10-105	2~10	105	27.5	CSK10	TSK10	A	4.2
CD020112.5010135	CAT50-CSK10-135		135				A	4.4
CD020112.5010165	CAT50-CSK10-165		165				B	4.6
CD020112.5010200	CAT50-CSK10-200		200				B	4.8
CD020112.5010225	CAT50-CSK10-225		225				B	5
CD020112.5016105	CAT50-CSK16-105	2~16	105	40	CSK16	TSK16	A	4.7
CD020112.5016135	CAT50-CSK16-135		135				A	4.9
CD020112.5016165	CAT50-CSK16-165		165				B	5.1
CD020112.5016200	CAT50-CSK16-200		200				B	5.5
CD020112.5020105	CAT50-CSK20-105	4~20	105	48	CSK20	TSK20	A	4.3
CD020112.5020135	CAT50-CSK20-135		135				A	4.6
CD020112.5020165	CAT50-CSK20-165		165				A	5
CD020112.5020200	CAT50-CSK20-200		200				A	5.4
CD020112.5025105	CAT50-CSK25-105	6~25	105	55	CSK25	TSK25	A	5.2
CD020112.5025135	CAT50-CSK25-135		135				A	5.4
CD020112.5025165	CAT50-CSK25-165		165				A	5.6
CD020112.5025225	CAT50-CSK25-225		225				A	6
