ER UM TYPE SPANNER FOR HIGH PRECISION ER COLLET CHUCKS

Model:
ER16UM;ER20UM
Brand:
chongde

Availability:

Quantity:



Inquire Add to Basket

Product Description

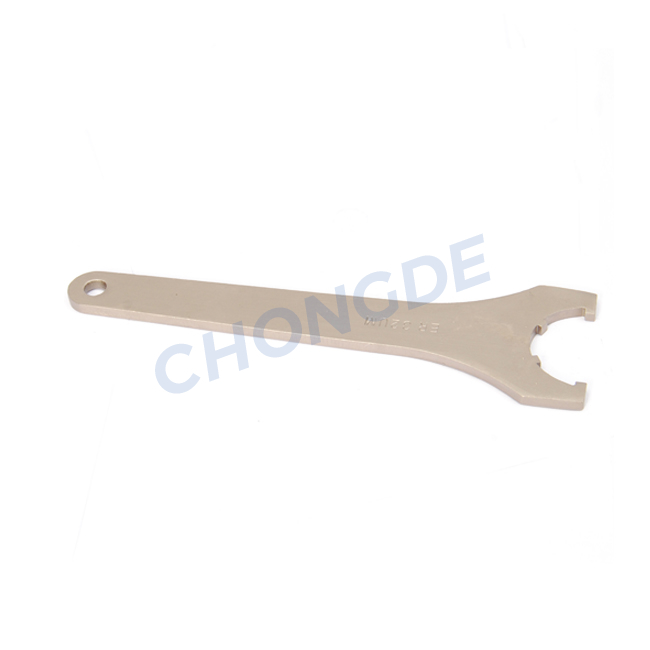

ER UM TYPE SPANNER FOR HIGH PRECISION ER COLLET CHUCKS

ER UM type spanner for Chongde high precision collet chucks. ER UM type wrench used for high precision ER UM type nut and high precision ER collet chucks. Available for ER16UM, ER20UM, ER25UM, ER32UM, ER40UM and ER50UM nut collet chuck.

Features:

1. Material: 45# OR 65Mn

2. Hardness: 40-45 HRC;

3. Appearance with sandblasting coating process.

Product Drawing and Size

P068-UM

Order No.	Type	Model No	l	L	Nut
CD010401.1626180	UM	ER16UM	26	180	ER16UM
CD010401.2030190		ER20UM	30	190	ER20UM
CD010401.2537210		ER25UM	37	210	ER25UM
CD010401.3247250		ER32UM	46.5	250	ER32UM
CD010401.4058290		ER40UM	58	290	ER40UM
CD010401.5074350		ER50UM	74	350	ER50UM
