ER MR TYPE SPANNER FOR HIGH PRECISION ER COLLET CHUCKS

  • ER11MR;ER16MR

  • chongde

Availability:
Quantity:

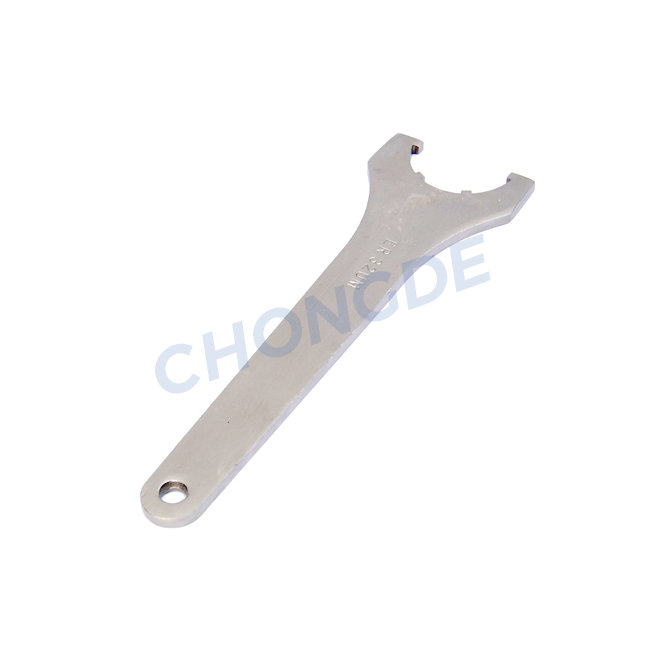

ER MR TYPE SPANNER FOR HIGH PRECISION ER COLLET CHUCKS



ER MR type spanner for Chongde high precision collet chucks. ER MR type wrench used for high precision ER MS type nut and high precision ER collet chucks. Available for ER11MS, ER16MS, ER20MS and ER25MS nut collet chuck.


Features:

1. Material: 45# OR 65Mn

2. Hardness: 40-45 HRC;

3. Appearance with sandblasting coating process.


Product Drawing and Size

P068-ERMS螺帽扳手-Model(1)


Order No. Type Model No l L Nut
CD010401.1110100 MR ER11MR 10 100 ER11MS
CD010401.1615135 ER16MR 15 135 ER16MS
CD010401.2018160 ER20MR 18 160 ER20MS
CD010401.2523180 ER25MR 23 180 ER25MS
