Chongde R8 SLN End Mill Tool Holder
Chongde R8 End Mill (SLN) Tool Holders apply to the holder of a DIN1835-B with a solid surface of the cutting tool, high speed and high precision machining. These End Mill Holders/ Adapters are very versatile and should be used for rigid machining operations in machines with R8 taper spindles. The tapers are ground to AT3 specifications or better for the right contact with the spindle.
Features:
Run out of the inside shank cone: ≤0.002mm;
Material: 20CrMnTi; Hardness: 56-60HRC;
Taper tolerance: ≤AT3; Taper is tested by Diebold standard inspection tools which made in Germany;
Nickel coating or polish nickel coating tool holder surface: Anti-rust,Anti-corrosion, durability better.
Our advantages
Good Rigidity;
High accuracy stability of parts processing and surface processing dimension;
Improving Cutting tool using life;
The wear of taper shank caused by vibration is reduced during heavy cutting;
ATC repeat the operation with high accuracy;
The appearace with nickel coating, the products are anti-rust, anti-corrosion and durability better.

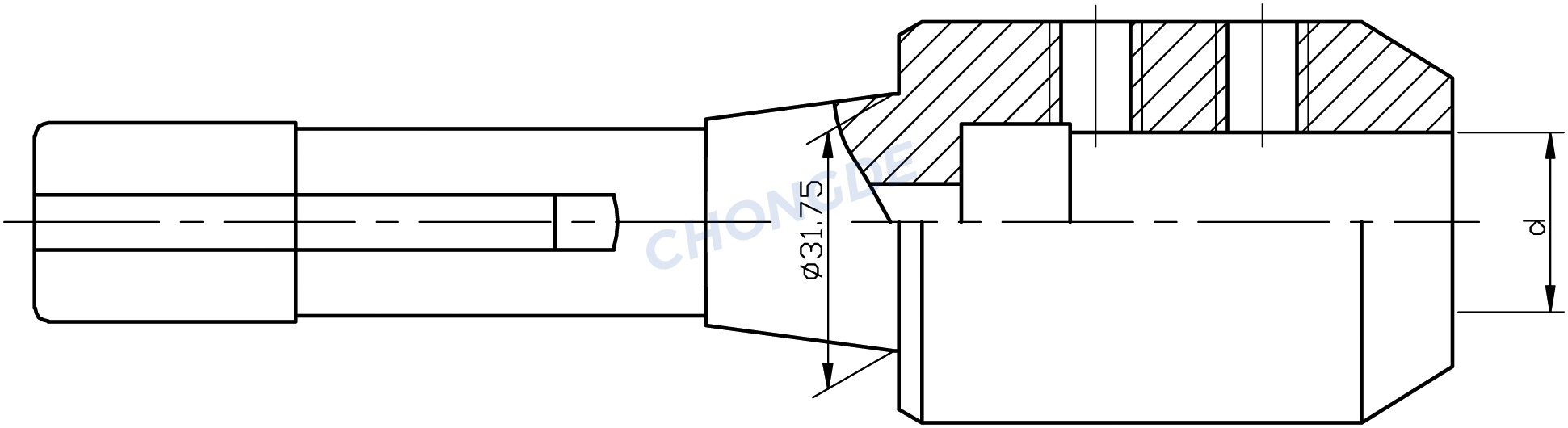

Order No. | Model No. | d | Order No. | Model No. | d |
CD180201.0805064 | R8-SLN | 3/16"-2-1/2 | CD180201.0805065 | R8-SLA | 3/16"-2-1/2 |
CD180201.0804040 | R8-SLN | 4-40 | CD180201.0804041 | R8-SLA | 4-40 |
Chongde R8 SLN End Mill Tool Holder
Chongde R8 End Mill (SLN) Tool Holders apply to the holder of a DIN1835-B with a solid surface of the cutting tool, high speed and high precision machining. These End Mill Holders/ Adapters are very versatile and should be used for rigid machining operations in machines with R8 taper spindles. The tapers are ground to AT3 specifications or better for the right contact with the spindle.
Features:
Run out of the inside shank cone: ≤0.002mm;
Material: 20CrMnTi; Hardness: 56-60HRC;
Taper tolerance: ≤AT3; Taper is tested by Diebold standard inspection tools which made in Germany;
Nickel coating or polish nickel coating tool holder surface: Anti-rust,Anti-corrosion, durability better.
Our advantages
Good Rigidity;
High accuracy stability of parts processing and surface processing dimension;
Improving Cutting tool using life;
The wear of taper shank caused by vibration is reduced during heavy cutting;
ATC repeat the operation with high accuracy;
The appearace with nickel coating, the products are anti-rust, anti-corrosion and durability better.
Order No. | Model No. | d | Order No. | Model No. | d |
CD180201.0805064 | R8-SLN | 3/16"-2-1/2 | CD180201.0805065 | R8-SLA | 3/16"-2-1/2 |
CD180201.0804040 | R8-SLN | 4-40 | CD180201.0804041 | R8-SLA | 4-40 |
