Nickel Coating HSK GSK High speed collet chuck

  • TIR: ≤ 0.0002";
  • Material: 20CrMnTi; Hardened to 56 – 60 HRC;
  • Run out of the inside shank cone: ≤0.002mm;Coaxiality with collet : ≤ 0.005mm;
  • Taper precision ≤AT3;
  • Dynamic balance can do:G2.5 30000rpm;
  • Nickel Coating.

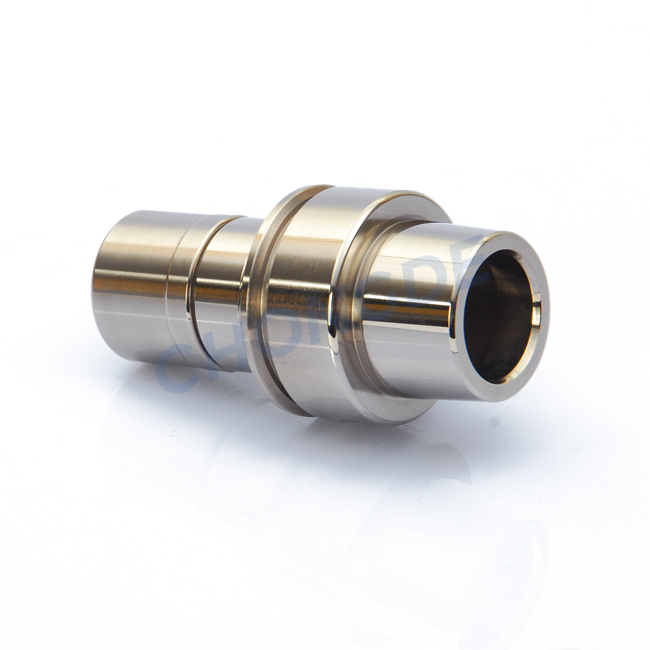

  • HSK40E-GSK10
  • ChongDe
Availability:
Quantity:

Nickel Coating HSK GSK High speed collet chuck


HSK shank GSK collet tool holder series has less protrusion length and more contact area than normal ER tool holder, so can provide higher radial cutting force, and greatly increase the clamping power. HSK GSK chuck has more stable characteristics can be gotten in high speed cutting process, improved service life. The HSK GSK tool holders are more suitable for higher speed and higher precision cutting. HSK63A Holders come balanced to 30,000rpm G2.5.


Features:

1. Material: 20CrMnTi or JIS-SCM415;

2. Hardness: 56-60HRC;

3. Carburizing depth: >0.8;

4. Roughness: Ra<0.4u;

5. Taper precision ≤AT3 and part of the standard size are tested by Diebold standard inspection tools which made in Germany;

6.Run out of the inside shank cone: ≤0.002mm;Coaxiality with collet : ≤ 0.005mm;

7. Dynamic balance can do:G2.5 30000rpm;

8. Suitable for boring, milling, drilling, tapping, grinding, carving processing.



Our advantages

1. Good Rigidity

2. High accuracy stability of parts processing and surface processing dimension

3. Improving cutting tool using life;

4. The wear of taper shank caused by vibration is reduced during heavy cutting;

5. ATC repeats the operation with high accuracy;

6. The appearance with nickel coating, the products is anti-rust, anti-corrosion and durability better, clean appearance and accuracy stable

5. -196℃ long cryogenic treatment and ultra long time thermal aging processing, reducing residual stresses and increasing the hardness and toughness.


P080 HSK-GSK

       Order No.

       Model No.

CAPACITY

L

D

M

COLLET

NUT

WRENCH

CD020105.3206045

HSK32A-GSK06-45

2-6

45

19.5

-

CSK06

GSK06

GH19

CD020105.3206060

HSK32A-GSK06-60

2-6

60

19.5

M8×1

CSK06

GSK06

GH19

CD020105.3210060

HSK32A-GSK10-60

1-10

60

27.1

M12×1

CSK10

GSK10

GH27

CD020105.5006090

HSK50A-GSK06-90

2-6

90

19.5

M8×1

CSK06

GSK06

GH19

CD020105.5006120

HSK50A-GSK06-120

2-6

120

19.5

M8×1

CSK06

GSK06

GH19

CD020105.5010090

HSK50A-GSK10-90

1-10

90

27.1

M12×1

CSK10

GSK10

GH27

CD020105.5010120

HSK50A-GSK10-120

1-10

120

27.1

M12×1

CSK10

GSK10

GH27

CD020105.5013070

HSK50A-GSK13-70

3-13

70

33

M16×1.5

CSK13

GSK13

GH33

CD020105.5013105

HSK50A-GSK13-105

3-13

105

33

M16×1.5

CSK13

GSK13

GH33

CD020105.5016090

HSK50A-GSK16-90

2-16

90

40

M18×1.5

CSK16

GSK16

GH40

CD020105.5016120

HSK50A-GSK16-120

2-16

120

40

M18×1.5

CSK16

GSK16

GH40

CD020105.5020090

HSK50A-GSK20-90

4-20

90

48

M22×1.5

CSK20

GSK20

GH48

CD020105.5020120

HSK50A-GSK20-120

4-20

120

48

M22×1.5

CSK20

GSK20

GH48

CD020105.5025090

HSK50A-GSK25-90

6-25

90

55

M28×1.5

CSK25

GSK25

GH55

CD020105.5025120

HSK50A-GSK25-120

6-25

120

55

M28×1.5

CSK20

GSK25

GH55

CD020105.6306080

HSK63A-GSK06-80

2-6

80

19.5

M8×1

CSK06

GSK06

GH19

CD020105.6306100

HSK63A-GSK06-100

2-6

100

19.5

M8×1

CSK06

GSK06

GH19

CD020105.6306120

HSK63-GSK06-120

2-6

120

19.5

M8X1

CSK06

GSK06

GH19

CD020105.6310060

HSK63A-GSK10-60

1-10

60

27.1

M12×1

CSK10

GSK10

GH27

CD020105.6310080

HSK63A-GSK10-80

1-10

80

27.1

M12×1

CSK10

GSK10

GH27

CD020105.6310100

HSK63A-GSK10-100

1-10

100

27.1

M12×1

CSK10

GSK10

GH27

CD020105.6310120

HSK63A-GSK10-120

1-10

120

27.1

M12×1

CSK10

GSK10

GH27

CD020105.6313090

HSK63A-GSK13-90

3-13

90

33

M16×1.5

CSK13

GSK13

GH33

CD020105.6313120

HSK63A-GSK13-120

3-13

120

33

M16×1.5

CSK13

GSK13

GH33

CD020105.6316080

HSK63A-GSK16-80

2-16

80

40

M18×1.5

CSK16

GSK16

GH40

CD020105.6316100

HSK63A-GSK16-100

2-16

100

40

M18×1.5

CSK16

GSK16

GH40

CD020105.6316120

HSK63A-GSK16-120

2-16

120

40

M18×1.5

CSK16

GSK16

GH40

CD020105.6320090

HSK63A-GSK20-90

4-20

90

48

M22×1.5

CSK20

GSK20

GH48

CD020105.6320120

HSK63A-GSK20-120

4-20

120

48

M22×1.5

CSK20

GSK20

GH48

CD020105.6325090

HSK63A-GSK25-90

6-25

90

55

M28×1.5

CSK25

GSK25

GH55

CD020105.6325120

HSK63A-GSK25-120

6-25

120

55

M28×1.5

CSK25

GSK25

GH55
