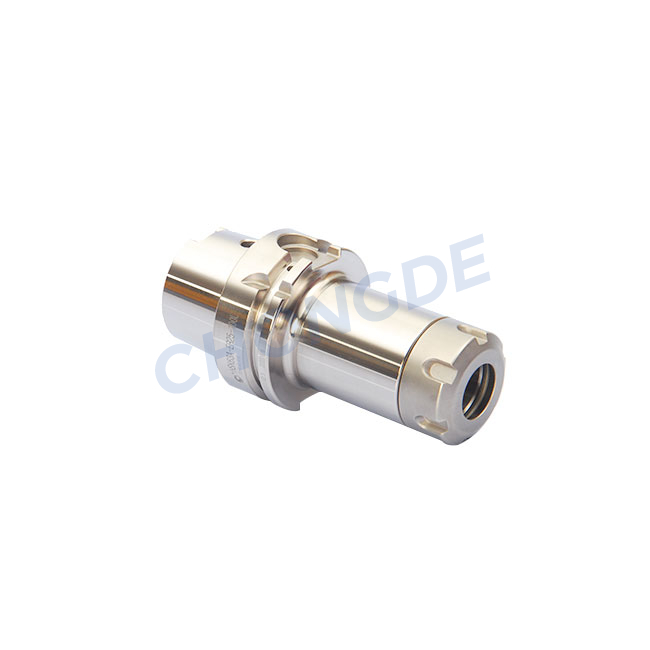

HSK ER Collet Chuck

Material: 20CrMnTi or JIS-SCM415
Hardness: 56-60HRC;
Taper precision ≤AT3 and part of the standard size are tested by Diebold standard inspection tools which made in Germany;
Run out of the inside shank cone: ≤0.002mm；Coaxiality with collet : ≤ 0.005mm；
Dynamic balance： G2.5 30000rpm;
Suitable for boring, milling, drilling, tapping, grinding, carving processing.

Model:
HSK63A-ER25-100
Brand:
ChongDe

Availability:

Quantity:



Inquire Add to Basket

Product Description

HSK toolholder has become an important part of machining manufacturing technology in high speed cutting. The machining performance of traditional BT tool system has been difficult to meet the requirements of high speed cutting. At present, HSK (German Hohl Shaft Kegel abbreviation) tool system is widely used in high speed cutting, KM tool system in the United States, NC5, Big-Plus tool system in Japan, etc., all of which belong to the two-side binding tool handle.

HSK ER Spring Collet Chuck Lathe Tool Holder, Mechanical spindle and cutting tools and other accessories. High Precision HSK shank Tool Holder, balanced G6.3 or G2.5 For choose, With DIN6499 collet chuck can be straight shank cutter clamping various sizes

We are specializing in the production of HSK ER Spring Collet Chuck, we can to figure to sample processing, and perfect after-sales service and technical support. Looking forward to your cooperation!

Features:

1. Material: 20CrMnTi or JIS-SCM415

2. Hardness: 56-60HRC;

3 Taper precision ≤AT3 and part of the standard size are tested by Diebold standard inspection tools which made in Germany;

4 Run out of the inside shank cone: ≤0.002mm；Coaxiality with collet : ≤ 0.005mm；

5 Dynamic balance： G2.5 30000rpm;

6. Suitable for boring, milling, drilling, tapping, grinding, carving processing.

Our advantages

1. Good Rigidity

2. High accuracy stability of parts processing and surface processing dimension

3. Improving cutting tool using life

4. The wear of taper shank caused by vibration is reduced during heavy cutting

5. ATC repeat the operation with high accuracy

6. The appearace with nickel coating, the products are anti-rust, anti-corrosion and durability better.

4. Clean appearance and accuracy stable

5. -196℃ long cryogenic treatment and ultra long time thermal aging processing, reducing residual stresses and increasing the hardness and toughness.

Order No.	Model No.	Shank	Range	D	L1	Collet	Spanner
CD010114.3211045	HSK32A-ER11-45	HSK32A	1-7	19	45	ER11	ER11A
CD010114.3211060	HSK32A-ER11-60	HSK32A	1-7	19	80	ER11	ER11A
CD010114.4016080	HSK40A-ER16-80	HSK40A	1-10	28		ER16	ER16A
CD010114.4020080	HSK40A-ER20-80		1-13	34		ER20	ER20A
CD010114.4025080	HSK40A-ER25-80		1-16	42		ER25	ER25UM
CD010114.5016080	HSK50A-ER16-80	HSK50A	1-10	28		ER16	ER16A
CD010114.5016100	HSK50A-ER16-100	HSK50A	1-10	28	100	ER16	ER16A
CD010114.5020080	HSK50A-ER20-80	HSK50A	1-13	34	80	ER20	ER20A
CD010114.5020100	HSK50A-ER20-100	HSK50A	1-13	34	100	ER20	ER20A
CD010114.5025080	HSK50A-ER25-80	HSK50A	1-16	42	80	ER25	ER25UM
CD010114.5025100	HSK50A-ER25-100	HSK50A	1-16	42	100	ER25	ER25UM
CD010114.5032100	HSK50A-ER32-100	HSK50A	1-20	50	100	ER32	ER32UM
CD010114.6316080	HSK63A-ER16-80	HSK63A	1 - 10	28	80	ER16	ER16A
CD010114.6316100	HSK63A-ER16-100				100
CD010114.6316120	HSK63A-ER16-120				120
CD010114.6316160	HSK63A-ER16-160				160
CD010114.6320080	HSK63A-ER20-80		1 - 13	34	80	ER20	ER20A
CD010114.6320100	HSK63A-ER20-100				100
CD010114.6320120	HSK63A-ER20-120				120
CD010114.6320160	HSK63A-ER20-160				160
CD010114.6325080	HSK63A-ER25-80		1 - 16	42	80	ER25	ER25UM
CD010114.6325100	HSK63A-ER25-100				100
CD010114.6325125	HSK63A-ER25-125				125
CD010114.6325160	HSK63A-ER25-160				160
CD010114.6332080	HSK63A-ER32-80		1 - 20	50	80	ER32	ER32UM
CD010114.6332100	HSK63A-ER32-100				100
CD010114.6332120	HSK63A-ER32-120				120
CD010114.6332160	HSK63A-ER32-160				160
CD010114.6340100	HSK63A-ER40-100		3 - 26	63	100	ER40	ER40UM
CD010114.6340120	HSK63A-ER40-120				120
CD010114.6340160	HSK63A-ER40-160				160
CD010114.1016100	HSK100A-ER16-100	HSK100A	1 - 10	28	100	ER16	ER16A
CD010114.1016120	HSK100A-ER16-120				120
CD010114.1016160	HSK100A-ER16-160				160
CD010114.1020100	HSK100A-ER20-100		1 - 13	34	100	ER20	ER20A
CD010114.1020120	HSK100A-ER20-120				120
CD010114.1020160	HSK100A-ER20-160				160
CD010114.1025100	HSK100A-ER25-100		1 - 16	42	100	ER25	ER25UM
CD010114.1025120	HSK100A-ER25-120				120
CD010114.1025160	HSK100A-ER25-160				160
CD010114.1032100	HSK100A-ER32-100		1- 20	50	100	ER32	ER32UM
CD010114.1032120	HSK100A-ER32-120				120
CD010114.1032160	HSK100A-ER32-160				160
CD010114.1040100	HSK100A-ER40-100		3 - 26	63	100	ER40	ER40UM
CD010114.1040120	HSK100A-ER40-120				120
CD010114.1040160	HSK100A-ER40-160				160

high speed hsk tool holder high precision ER collet chuck CNC machine tool accessories
