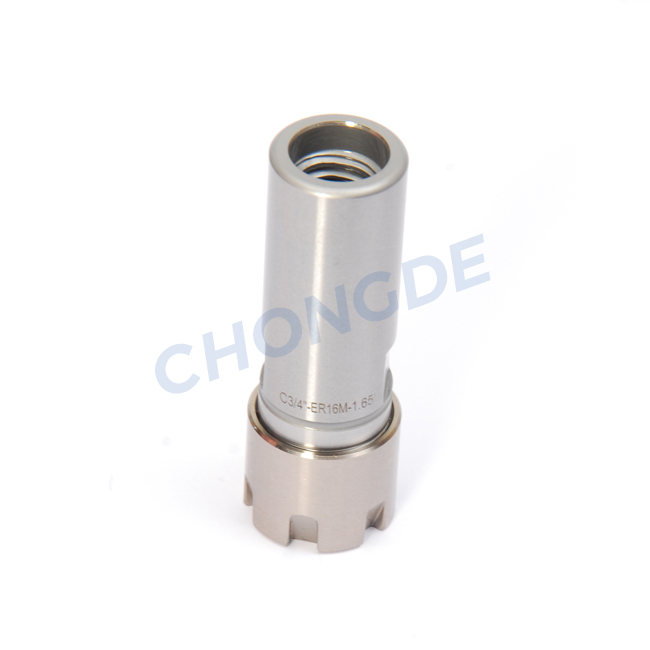

ER Straight Shank Collet Chuck

  • Material: 20CrMnTi or JIS-SCM415
  • Hardness: 56-60HRC;
  • ER Straight Shank is longer, suitable for deep hole processing;
  • Outer diameter and other parts after grinding, eliminate the unbalanced allowance, conducive to the stability of the cutting;
  • Can reduce to the selection of lengthen cutting tool, reduce cost and improve efficiency;
  • Run out of the inside shank cone: ≤0.003mm;Coaxiality with collet : ≤ 0.005mm;
  • Dynamic balance : G6.3 12000rpm; G6.3 18000rpm.
  • C1/2"-ER16M-55

  • ChongDe

Availability:
Quantity:

ER Straight Shank Collet Chuck



High Quality C/ER Straight Shank Collet Chuck Used In Milling Machine,balanced G6.3 12000RPM/18000RPM.It can reduce to the selection of lengthen cutting tool,reduce cost and improve efficiency. Shank of the Straight Shank Collet Chuck: 10mm, 12mm, 16mm, 20mm, 25mm, 32mm, 40mm. Suitable Collet:ER11/ER16/ER20/ER25/ER32/ER40. The protrusion length is difference from 20mm to 200mm. Suitable NUT & Wrench is also upon request.



High Precision MTB shank Tool Holder are nickel coated, anti-rust, anti-corrosion, and durability better. With DIN6499 collet chuck can be straight shank cutter clamping various sizes.



Features:

1. Material: 20CrMnTi or JIS-SCM415

2. Hardness: 56-60HRC;

3. ER Straight Shank is longer, suitable for deep hole processing;

4. Outer diameter and other parts after grinding, eliminate the unbalanced allowance, conducive to the stability of the cutting;

5. Can reduce to the selection of lengthen cutting tool, reduce cost and improve efficiency;

6. Run out of the inside shank cone: ≤0.003mm;Coaxiality with collet : ≤ 0.005mm;

7. Dynamic balance : G6.3 12000rpm; G6.3 18000rpm.



Our advantages



1. Good Rigidity

2. High accuracy stability of parts processing and surface processing dimension

3. Improving cutting tool using life

4. The wear of taper shank caused by vibration is reduced during heavy cutting

5. ATC repeats the operation with high accuracy

6. The appearance with nickel coating, the products are anti-rust, anti-corrosion and durability better.

4. Clean appearance and accuracy stable

5. -196℃ long cryogenic treatment and ultra long time thermal aging processing, reducing residual stresses and increasing the hardness and toughness.


P029 ER直柄

      Order No.

   Model No.

L

D

C

      T1

      T2

Collets

Spanner

CD010132.0811050

C8-ER8A-50

71.5

13.5

8

M5X1P

M4X0.7P

ER8

ER8A

CD010132.0811100

C8-ER11A-100

128.3

19

8

M6X1P

M4X0.7P

ER11

ER11A

CD010132.1008100

C10-ER8A-100

121.5

13.5

10

M5X1P

M5X1P

ER8

ER8A

CD010132.1008150

C10-ER8A-150

171.5

13.5

10

M5X1P

M5X1P

ER8

ER8A

CD010132.1008180

C10-ER8A-180

201.5

13.5

10

M5X1P

M5X1P

ER8

ER8A

CD010132.1208055

C12-ER8A-55

76.5

13.5

12

M5X1P

M5X1P

ER8

ER8A

CD010132.1208100

C12-ER8A-100

121.5

13.5

12

M5X1P

M5X1P

ER8

ER8A

CD010132.1208150

C12-ER8A-150

171.5

13.5

12

M5X1P

M6X1P

ER8

ER8A

CD010132.1611050

C16-ER11A-50

74.3

19

16

M6X1P

M10X1.5P

ER11

ER11A

CD010132.1611100

C16-ER11A-100

124.3

19

16

M6X1P

M10X1.5P

ER11

ER11A

CD010132.1611120

C16-ER11A-120

144.3

19

16

M6X1P

M10X1.5P

ER11

ER11A

CD010132.1611150

C16-ER11A-150

174.3

28

16

M6X1P

M10X1.5P

ER11

ER11A

CD010132.1616050

C16-ER16A-50

90.3

28

16

M6X1P

M10X1.5P

ER16

ER16A

CD010132.1616100

C16-ER16A-100

140.3

28

16

M6X1P

M10X1.5P

ER16

ER16A

CD010132.1616120

C16-ER16A-120

160.3

28

16

M6X1P

M10X1.5P

ER16

ER16A

CD010132.1616150

C16-ER16A-150

190.3

28

16

M6X1P

M10X1.5P

ER16

ER16A

CD010132.1616200

C16-ER16A-200

210.3

28

16

M6X1P

M10X1.5P

ER16

ER16A

CD010132.1620100

C16-ER20A-100

150.2

34

16

M10X1.5P

M10X1.5P

ER20

ER20A

CD010132.1620150

C16-ER20A-150

200.2

34

16

M10X1.5P

M10X1.5P

ER20

ER20A

CD010132.1625100

C16-ER25-100

156.7

42

16

M10X1.5P

M10X1.5P

ER25

ER25UM

CD010132.2016050

C20-ER16A-50

90.3

28

20

M10X1.5P

M10X1.5P

ER16

ER16A

CD010132.2016100

C20-ER16A-100

140.3

28

20

M10X1.5P

M10X1.5P

ER16

ER16A

CD010132.2016150

C20-ER16A-150

220.3

28

20

M10X1.5P

M10X1.5P

ER16

ER16A

CD010132.2016200

C20-ER16A-200

270.3

28

20

M10X1.5P

M10X1.5P

ER16

ER16A
